Robot Vision Capabilities

Moq:	bisa dinegosiasikan
harga:	negotiable
kemasan standar:	Dikemas dengan film plastik dan bungkus dengan strip
Periode pengiriman:	Sesuai dengan kebutuhan pelanggan
metode pembayaran:	bisa dinegosiasikan
Kapasitas pasokan:	Kapasitas produksi yang kuat

Informasi Rinci

Deskripsi Produk

Informasi Rinci

Tempat asal

Nama merek

CEI-Kinte

Sertifikasi

ISO9001/FEM/ISO14001/OHSAS 18001

Nomor model

disesuaikan

Tim R&D profesional

Peralatan:

Otomatisasi

Fleksibilitas:

Tinggi

Pengelolaan:

Sistem Manajemen Pabrik

bengkel:

Toko Press/Body Shop/Toko Cat/Toko Perakitan

Plant planning:

Overall

Manufaktur:

di rumah

Garis produksi:

Jalur Baru/Renovasi & Peningkatan

Menyoroti:

ISO14001 Automotive Smart Factory

Automotive Smart Factory ISO14001

Robot Vision Capabilities

Deskripsi Produk

robot vision capabilities

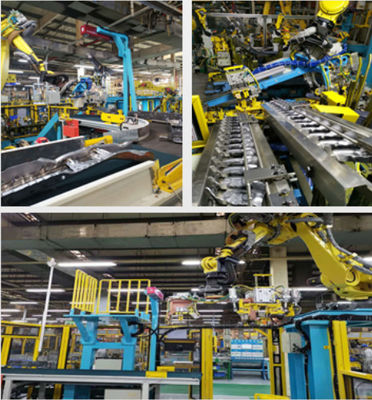

Kinte embeds robot vision systems in automation applications to continuously improve industrial intelligence, and has successively applied in robot 2D vision, 3D vision, laser positioning guidance vision and laser vision gluing in the automotive industry. For example, roof grabbing, front floor/rear floor grabbing, stringer grabbing, roof gluing laser real-time inspection, etc.

Robot 2D Vision

Pic1

Robot 3D Vision

Pic2

Robotic 3D Laser Vision

Pic3

Robotic 3D Laser Vision

Pic4

Robot vision case

Case 1

Models: 4 models collinear (up to 8 models)

Tempo: 70JPH

Part type: left and right longitudinal beams

ROBOT: FANUC

PLC: Mitsubishi

Vision type: 3D laser vision

Scan matching speed: 7 seconds

External light source: not required

Technical Features:

1. 5 people designing the whole line

2. 3D laser visual recognition and capture of workpiece at any angle and any position

3. The visual gripper robot automatically grabs the upper part on the conveyor belt

4. The vision system uses intelligent high-speed algorithms to quickly identify and match and improve the beat;

5. Parts are conveyed by automatic palletizing

6. Solder joint inspection is automatically detected by visual camera

Case 2

Model: three models

Tempo: 30JPH

Part type: underbody combination

ROBOT : FANUC

PLC: Mitsubishi

Vision system brand: Cognex

Vision type: 2D vision

Photo matching speed: 15 seconds

External light source: required

Technical Features:

1. Use high-precision material rack + visual guidance system to guide the grasping parts;

2. The camera is installed on the robot to move the measurement scheme;

Case 3

Models: 4 models collinear

Beat: 30JPH for the first phase, 40JPH for the second phase

Part Type: Cabin Stringer

ROBOT : ABB

PLC : Siemens

Vision System Brand: ISRA

Vision type: 3D vision

Photo matching speed: 5 seconds

External light source: required

Technical Features:

1. Use high-precision material rack + visual guidance system to guide the grasping parts;

2. The mobile measurement scheme where the camera is installed on the robot.

Robot Vision Capabilities 0 Robot Vision Capabilities 1 Robot Vision Capabilities 2 Robot Vision Capabilities 3 Robot Vision Capabilities 4 Robot Vision Capabilities 5
